Descripción
SPECIFICATIONS
Application: Desktop

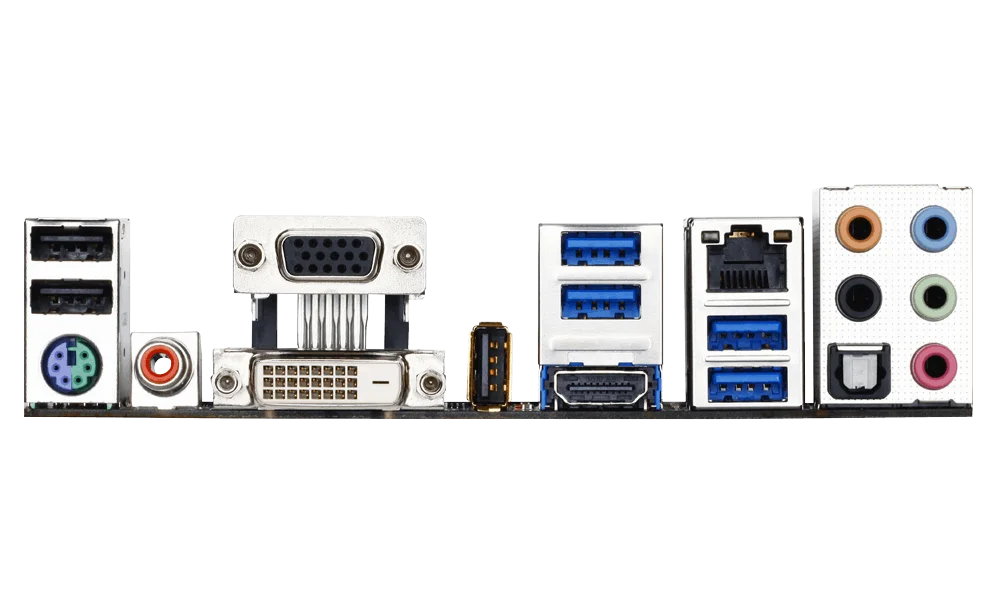

Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.3,DVI-D
Battery Included: No
Brand Name: Gigabyte
Certification: weee,UL
Chipset: Intel H97
Chipset Manufacturer: Intel
Form Factor: CeB,ATX
Hign-concerned Chemical: None
Maximum Ram Capacity: 32 GB
Memory channel: Double
Number of PCI: 4
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI – E standards: PCI-E 3.0
Package: No
Ports: SATA
Processor compatibility: Intel Others
Quality Certification: ROHS
RAID Supported: No
Socket Type: LGA1150
Special Features: None
Storage Interface Type: SATA
Support Memory Type: DDR3
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video
With CPU: No
| Brand | GIGABYTE |
| Series | G1 Gaming |

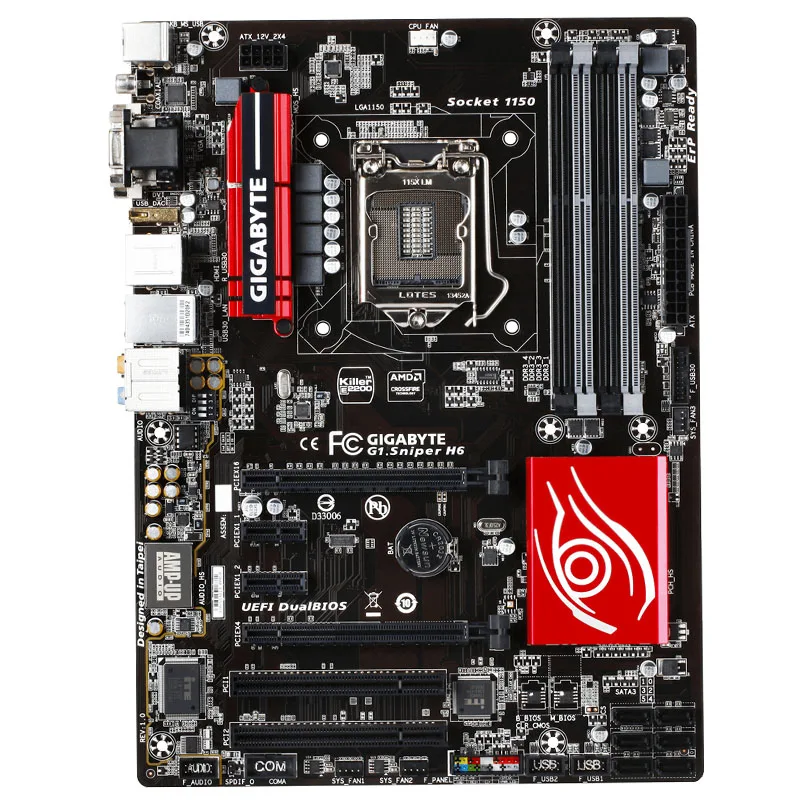

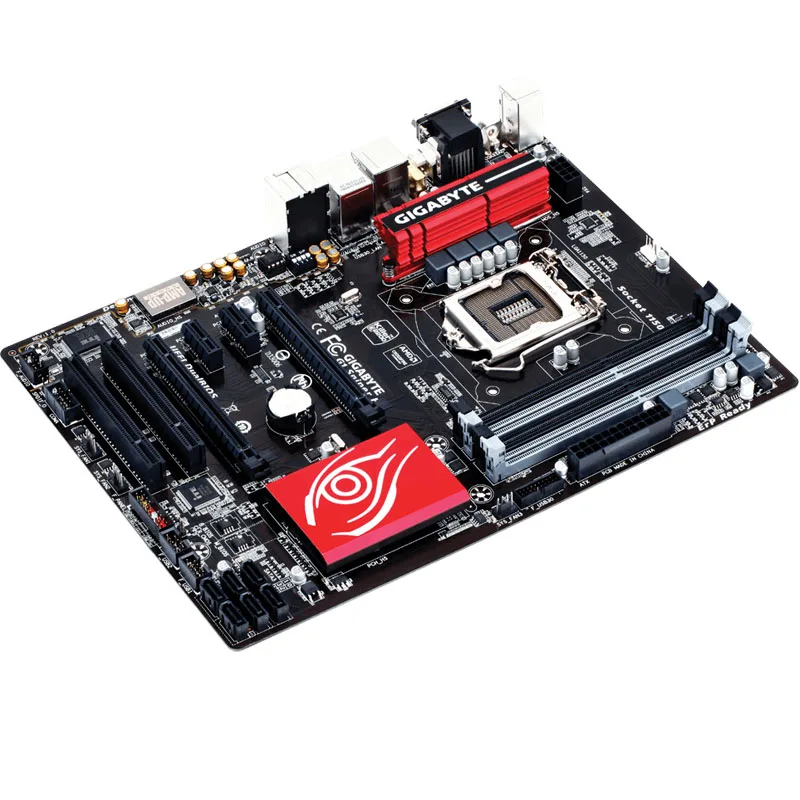

| Model | G1.Sniper H6 |
| CPU Socket Type | LGA 1150 |
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium |
| Chipset | Intel H97 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x240pin |
| Memory Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 (x4) |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Qualcomm Atheros Killer E2201 |
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D 1 x D-SUB |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 3 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper 1 x audio gain control switch |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0″ x 8.9″ |
| Power Pin | 24 Pin |
| Features | Supports 4th and 5th Generation Intel Core processors
AMP-UP Audio technology with exclusive Upgradable OP-AMP Audio Noise Guard with LED path lighting DAC-UP USB port High end Nichicon audio capacitors Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier Killer E2200 gaming networking platform Extreme multi graphics support Long lifespan Durable Solid caps APP Center including EasyTune and Cloud Station utilities GIGABYTE UEFI DualBIOS Support for APP Center Support for Q-Flash Support for Smart Switch Support for Xpress Install |
